main clip thing

This application is a screw on application. You can elect to use screws, sticky dots or magnets. depending on the surface you are mounting please select the proper attachment methods for your application

step 1

start with the main clip

step 2

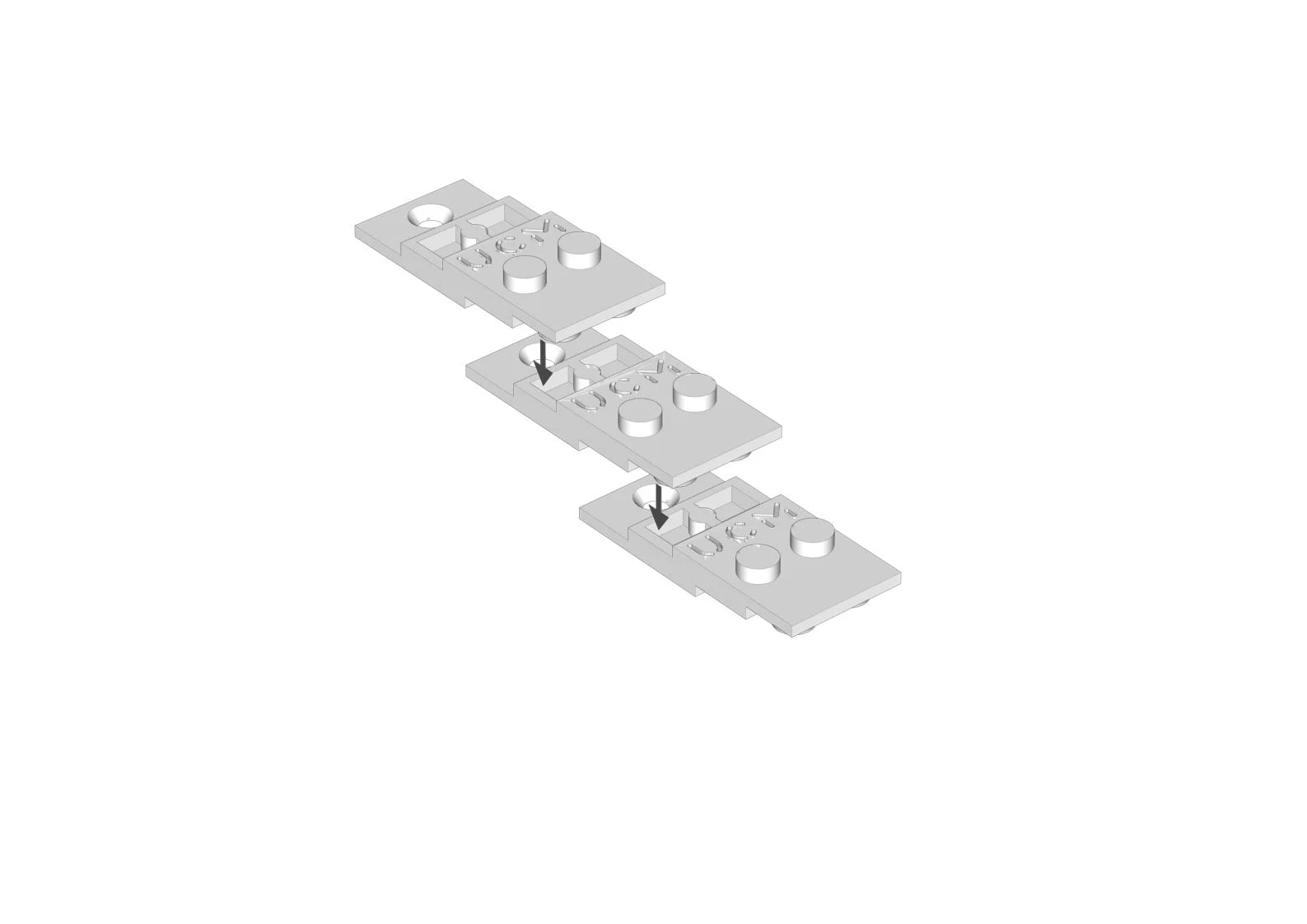

clips can be connected together. this can be extended to how ever many you will need for each project.

step 3

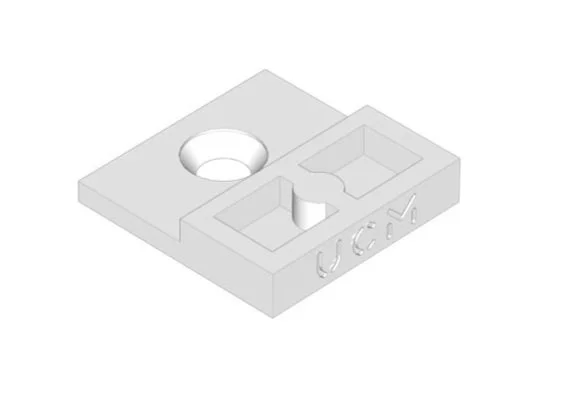

use the end clip for the cleanest install. use the provided screw and place this at the best location. this will be the start to your clip line

step 4

place your clip on this to begin

step 5

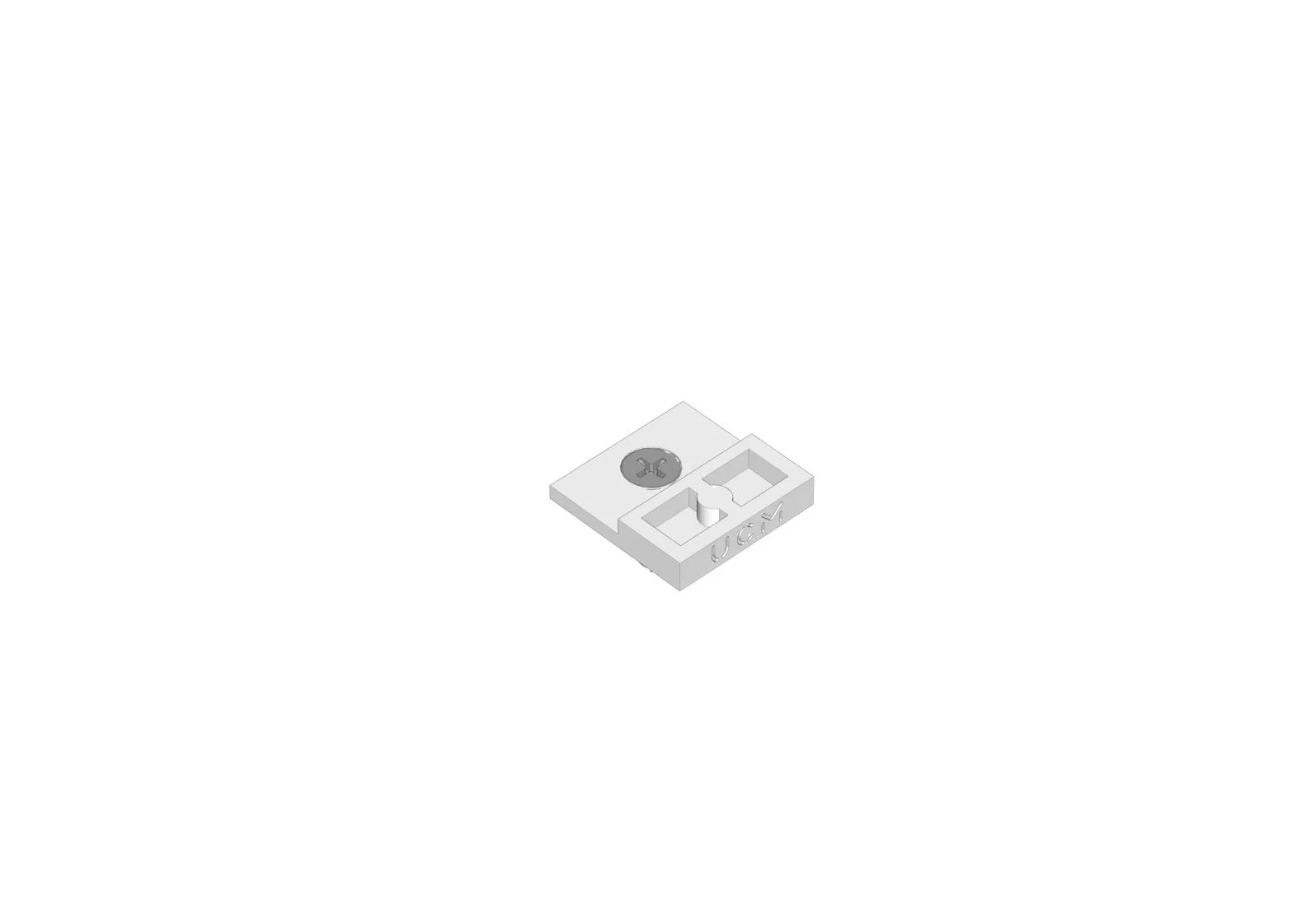

use the screw provided to screw into the top of the last bracket.

step 6

place the screw cover on. this isn’t necessary. but will create a clean look

step 7

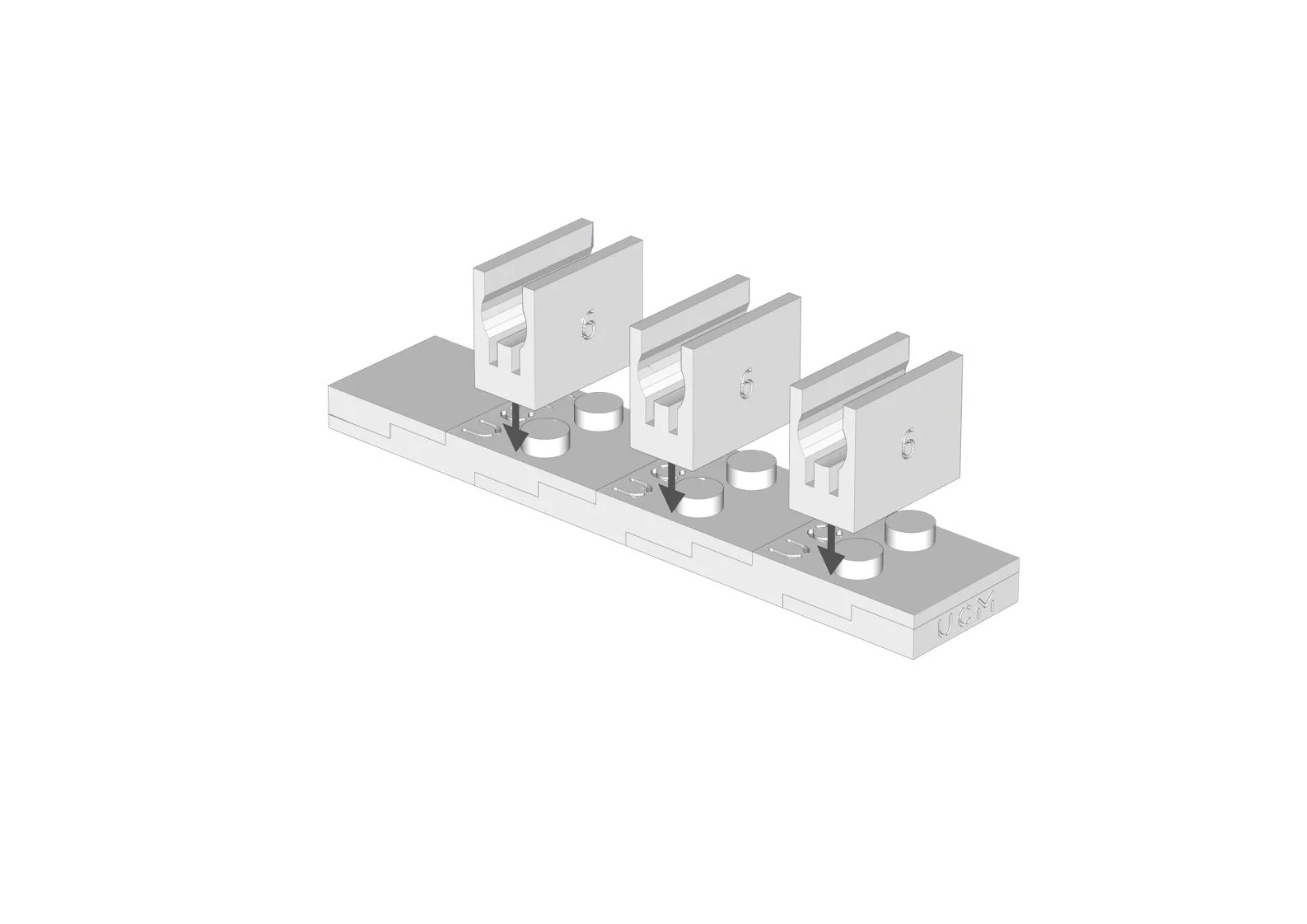

Select the proper cable holder sizes for your application. and place them on the front of the strip.

step 8

place cables in the cable holder things.

Parts used

holder thing

Part number: ht

cable holder thing

Part number: cht

screw hide thing

Part number: sct

end screw thing

Part number: est
